LZW-12 12KV outdoor seat type cast-resin CT current transformer
Interview
Product Description
This current transformer is outdoor cast-resin outdoor anti-pollution type current transformer has high precision, applicable to 12 kv ac 50 Hz, and used as electric current, electric energy measurement and relay protection.
Suitable Operating Condition
1.Altiude is no more than 1000m.
2.The maximum change of surrouding temperature is no more than -30~+40°C.
3.Universal product is only used in the area with less than 85% relative humidity.
4.Installation field had no serious effect transformer insulated, steam, chemical
deposition, dust foul and other explosive and corrosive medium, and the field without
serious shake and bump.

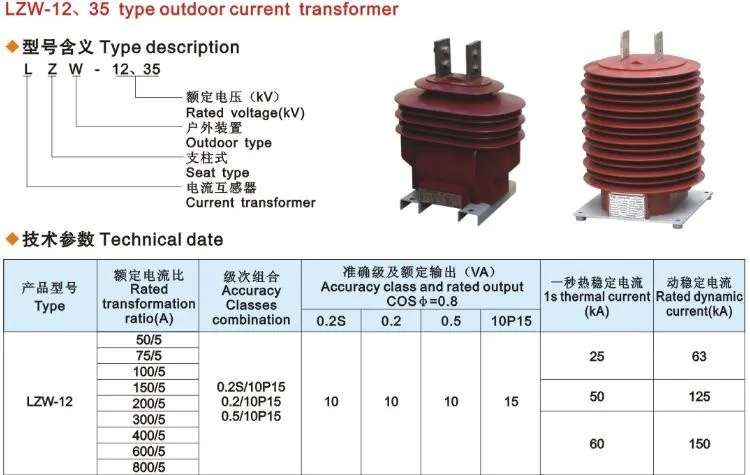

Rated output dynamic and thermal stability of current products see table
