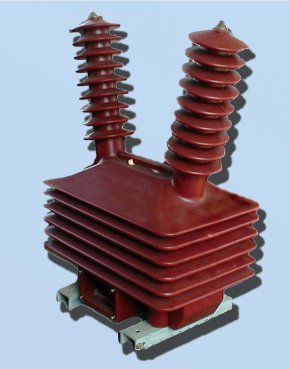

JDZW-35 VOLTAGE TRANSFORMER/VT/PT
Interview
PARAMETERS
| Model | Rated Voltage Ratio(KV) | Accuracy class and Accuracy class combination rated secondary output (VA) | Limited output (VA) | Rated insulation level (KV) | Surface creepage distance (mm) | Once fuse(A) | Wt(KG) |
|---|---|---|---|---|---|---|---|
| JSZW-35 | 35000/100 | 0.2---60 0.5---150 1---300 3---600 | 1200 | 40.5/95/200 | 1480 | 0.2 | 120 |
| 35000/100/100 | 0.2/0.2---30/30 0.2/0.5---30/10 0.5/0.5---60/60 | 600/600 | |||||
| JDZXW-35G | 35000/√3 100/√3 100/√3 | 0.2/6P(3P)---10/100 0.5/6P(3P)---90/100 1/6P(3P)---200/100 3/6P(3P)---500/100 | 600 | ||||
| 35000/√3 100/√3 100/√3 100/√3 | 0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/20/100 0.5/0.5/6P(3P)---30/30/100 | 300/300 |
